Summing Mixer SMT BIV-16

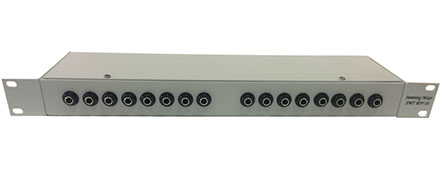

16 summation channels (8 stereo pairs).
It is intended for the summation of linear signals from the output of a 16-channel audio interface.
The transformer is made of an amorphous alloy developed by a Russian engineer.
Comfortable operation of the device with signals at the input 0 dB

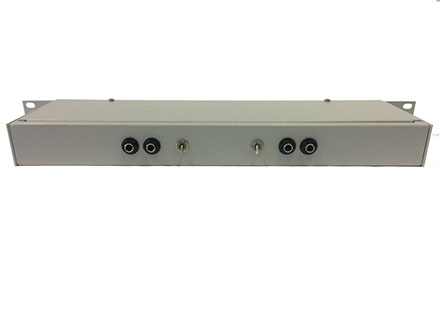

Two outputs - on the monitor monitors and the channel of the mix re-recording. They have a switch + 6 dB.
Frequency range is 20 Hz - 20 kHz.
Balanced input - a maximum of +10 dB.
Input resistance will depend on the resistance of the output channels of the sound card, but not less than 2 kOhm.
THD - 0.01%
In the process of working SMT BIV-16 allows you to achieve a good spatial perception and transparency of the sound picture.
Digital summation in Logic.
Analog summation in SMT BIV-16
